STEVAL-ISA023V1: 24W, 5V @ 3A, 12V, 3.3V 90 ~ 265VAC

Summary

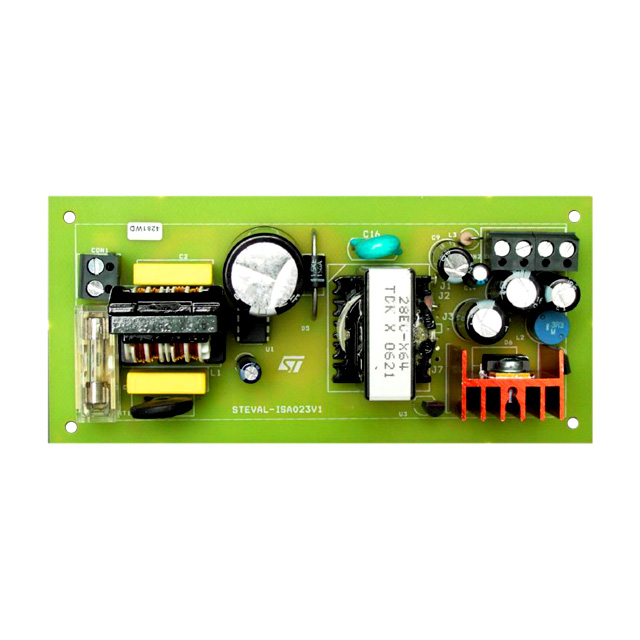

This document describes the reference design of the 25W Switch Mode Power Supply which is dedicated to industrial or white goods applications. The board accepts wide range input voltages (90 to 265Vrms) and delivers 3 output voltages.

The Switch mode power supply is based on the VIPer53E. The VIPer53E combines in the same package an enhanced current mode PWM controller with a high voltage MDMesh Power Mosfet. High efficiency and low standby consumption are the main characteristics of this board. Such features, coupled with minimal part requirements and global low cost in addition to, makes it an ideal solution for powering industrial or consumer equipment, meeting worldwide standards.

Specifications

Manufacturer	STMicroelectronics
Category	AC/DC and DC/DC Conversion
Sub-Category	AC/DC SMPS - Multi Output
Eval Board Part Number	497-5865-ND
Eval Board Supplier	STMicroelectronics
Eval Board	Board not Stocked
AC Voltage	115 V 230 V Universal (115 / 230V)
Outputs and Type	3 Isolated
Voltage Out: Highest Current First	5V, 12V, 3.3V
Current Out	3A, 800mA, 100mA
Output Power	24 W
Efficiency @ Conditions	>78%, 230 AC, -5V and -12V @ Full Load >75%, 90V ac, -5V and -12V @ Full Load
No-load Input Power @ Voltage	580 mW @ 115 V 620 mW @ 230 V
Features	Current Limit (Adj. or Fixed) Energy Standard Compliant Short Circuit Protection Thermal Protection Under Voltage Protection, Brown-Out
Switching Frequency	60 kHz
Internal Switch	Yes
Component Count + Extras	49 + 2
Voltage In	90 ~ 265 VAC
Application / Target Market	Set-Top Boxes White Goods
Design Author	STMicroelectronics
Main I.C. Base Part	VIPer53
Date Created By Author
Date Added To Library	2017-05
