TE Connectivity Linx

FPC Antennas

TE Connectivity Linx LTE/LPWA flexible adhesive dipole antennas are compact, low-profile, and flexible

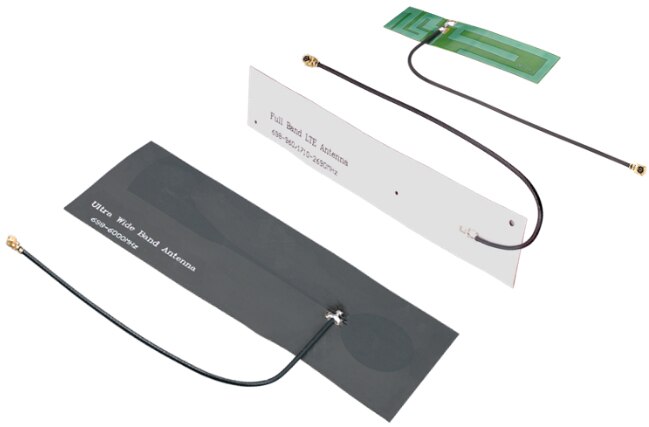

Image of TE Connectivity Linx FPC Antennas TE Connectivity Linx FPC antennas provide a broad set of capabilities based around a wideband cellular 2G/3G/4G backbone to support Cellular IoT (LTE-M/Cat-M1, NB-IoT), LPWA such as LoRaWAN® and Sigfox®, GNSS/Navigation, and unlicensed applications like Wi-Fi/WLAN and Bluetooth®.

TE Connectivity Linx FPC antennas provide a ground plane independent dipole embedded antenna solution comparable in performance to an external antenna. The FPC flexibility and adhesive backing make them easy to mount in unique and custom enclosures while enabling environmental sealing and protection from tampering or accidental antenna damage. FPC antennas connect with a 100 mm long, 1.13 mm, coaxial cable terminated in an MHF1/U.FL-compatible plug connector.

Features
  • Compact, low-profile
  • 0.2 mm height
  • MHF1/U.FL-compatible plug (female socket) on 100 mm of 1.13 mm coaxial cable
  • Flexible to fit in challenging enclosures
  • Adhesive backing permanently adheres to nonmetal enclosures using 3M 467MP™/200MP
    • adhesive
Applications
  • Cellular IoT
  • LTE-M (Cat-M1)
  • NB-IoT
  • Worldwide LTE, UMTS, and GSM
  • Low-power, wide-area (LPWA)
  • LoRaWAN
  • Sigfox
  • Citizens Band Radio Service (CBRS)
  • ISM bands
  • Bluetooth
  • Zigbee®
  • FirstNet® Public Safety
  • Smart home networking
  • Internet of Things (IoT) devices
  • Gateways

TE Connectivity Linx FPC Part Numbers and Target Applications

  • ANT-LPC-FPC-100: LTE, Cellular IoT, CBRS, GNSS
  • ANT-LPL-FPC-100: LTE, Cellular IoT, LPWA, LoRaWAN, Sigfox, ISM
  • ANT-LPX-FPC-100: LTE, Cellular IoT, LPWA, GNSS, WiFi/WLAN, ISM

FPC Antennas

ImageManufacturer Part NumberDescriptionFrequency (Center/Band)Antenna TypeAvailable QuantityPriceView Details
RF ANT LTE CBRS FLEX ADHES UFLANT-LPC-FPC-100RF ANT LTE CBRS FLEX ADHES UFL750MHz, 876MHz, 1.58GHz, 1.96GHz, 2.35GHz, 2.44GHz, 2.59GHz, 3.55GHzFlat Patch11644 - Immediate$5,373.00View Details
RF ANT LTE LPWA FLEX ADHES UFLANT-LPL-FPC-100RF ANT LTE LPWA FLEX ADHES UFL750MHz, 876MHz, 1.96GHz, 2.35GHz, 2.44GHz, 2.59GHz, 3.55GHzFlat Patch0 - Immediate$5,864.00View Details
Published: 2020-01-02
